IR repeater
News  Data  Video

This circuit was developed to repeat a IR remote control signal from one or more rooms to another location. Initial use was to allow my folks to use one cable box on multiple TVs in different rooms.

News
30SEP14Got featured on Hack a Day http://hackaday.com/2014/09/29/multi-input-ir-remote-control-repeater/
28SEP14 New design work is done and is up and running.
Instructable: http://www.instructables.com/id/IR-remote-control-multidrop-extender
Kits available at
IR-TX:  https://www.tindie.com/products/tymkrs/ir-transmitter-kit/
IR-RX: https://www.tindie.com/products/tymkrs/ir-receiver-kit/

Data

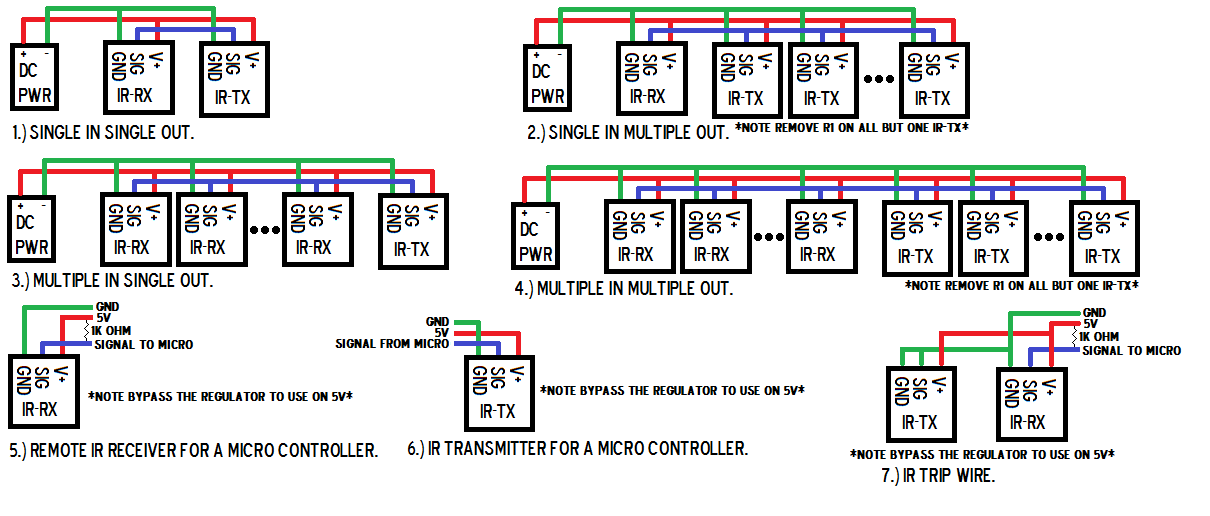

Useage modes

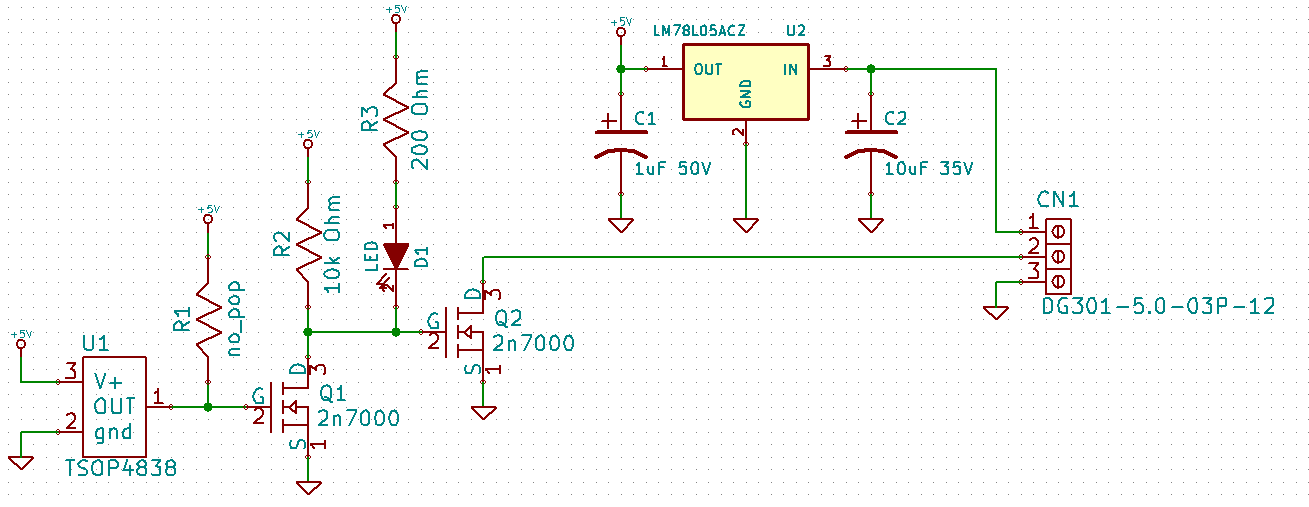

IR-RX logic

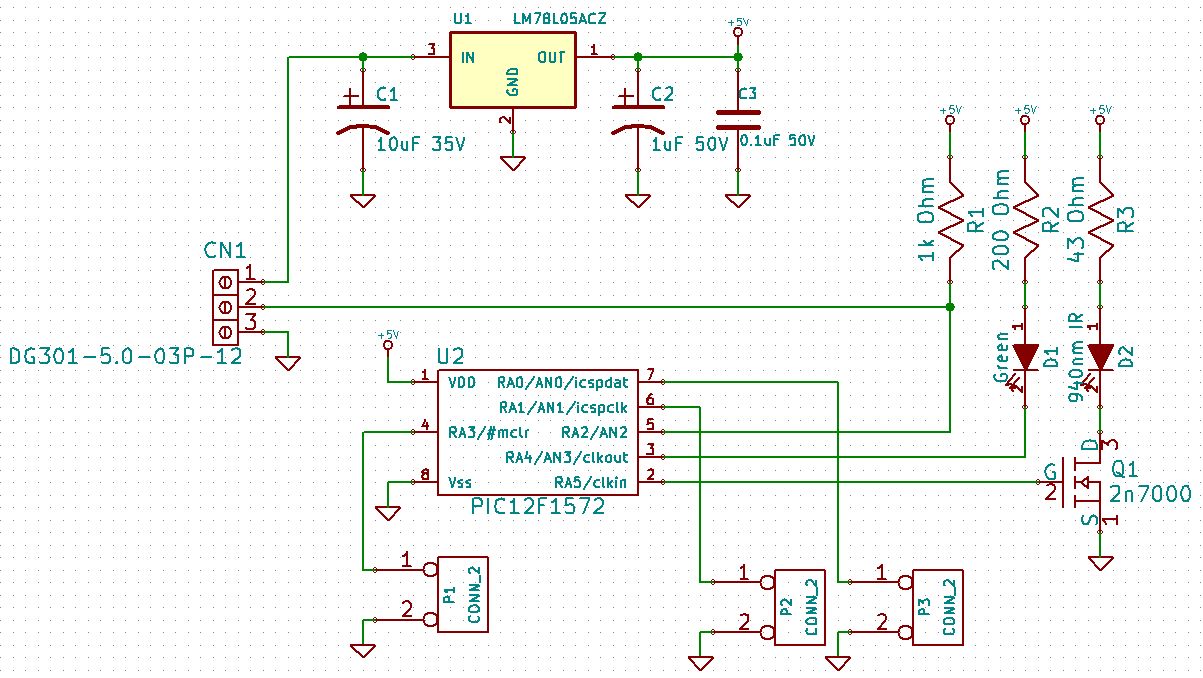

IR_TX logic

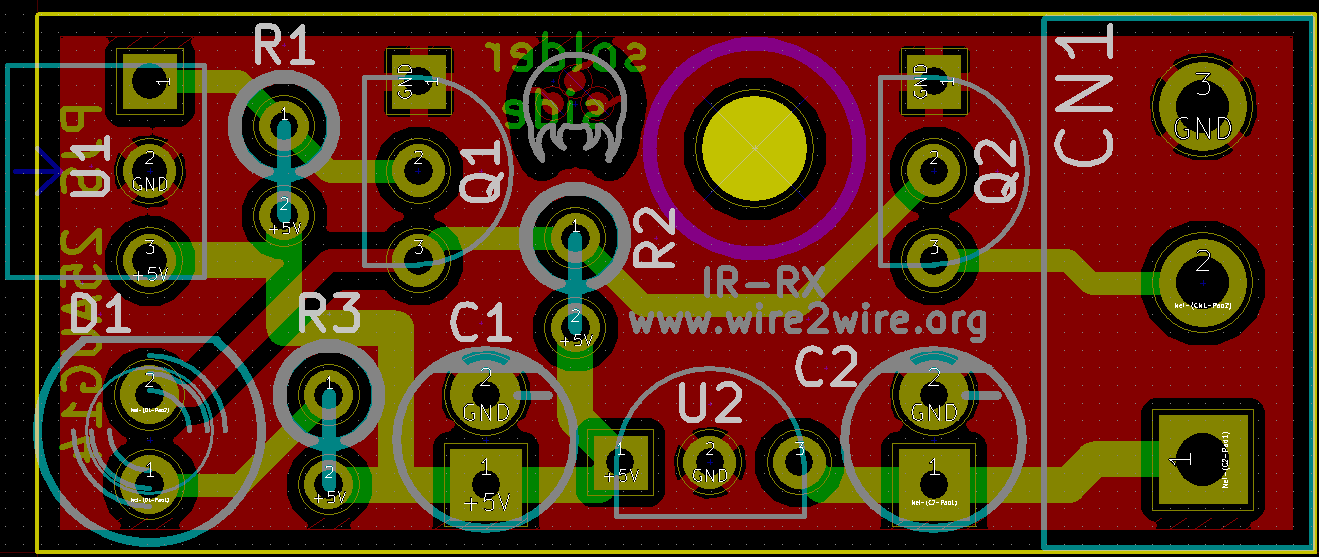

IR-RX board file

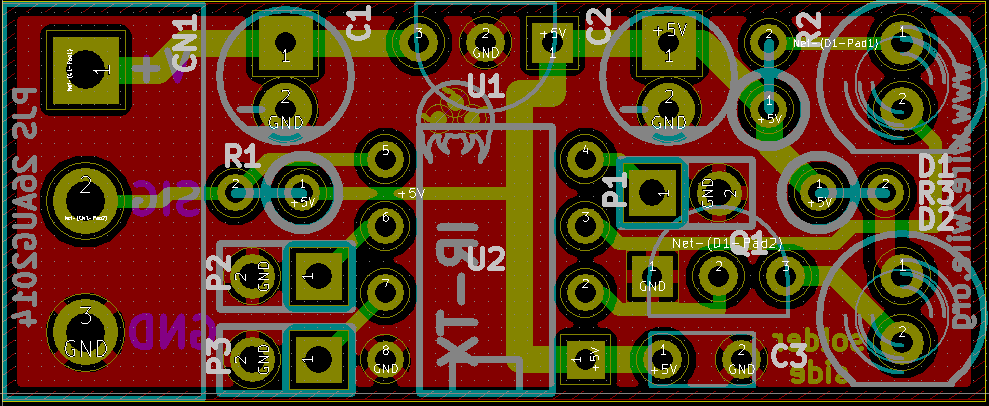

IR-TX board

Download the full package (micro code and PCB data) here [IR_repeater.zip].

Please see the instructable for a detailed circuit description here: http://www.instructables.com/id/IR-remote-control-multidrop-extender


Demo videos
